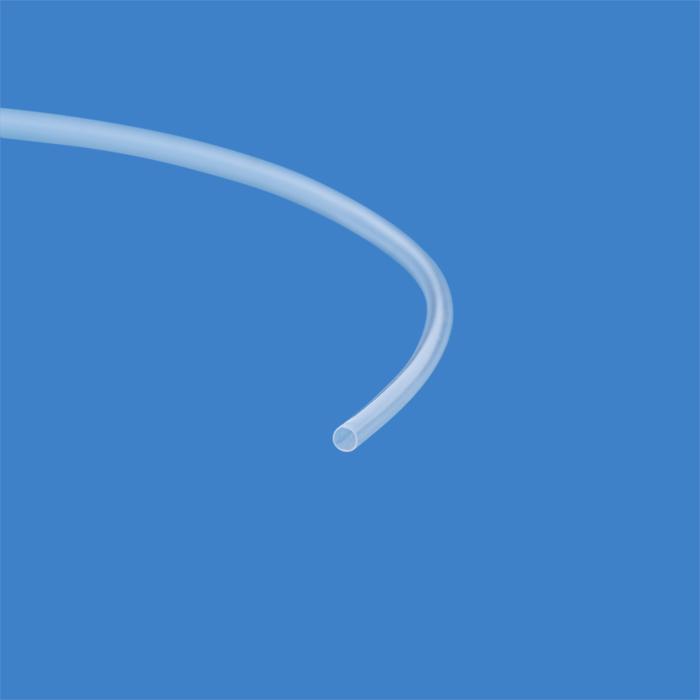

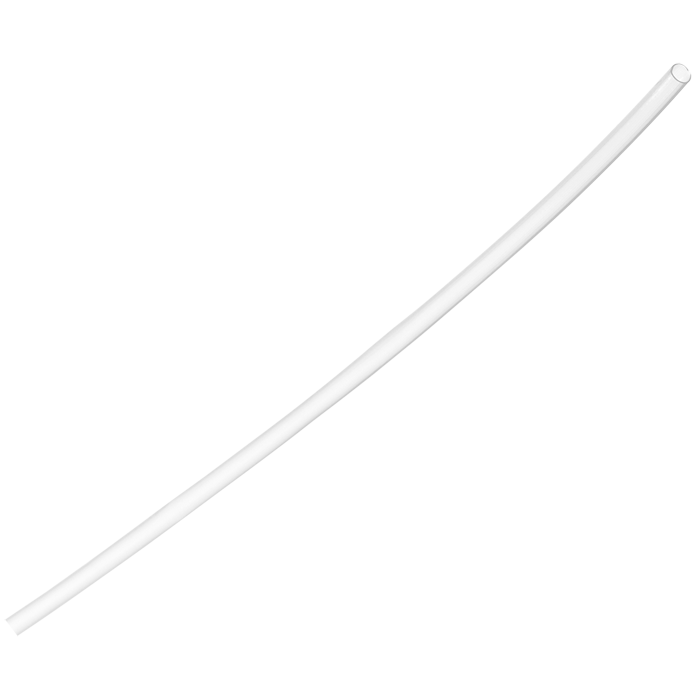

Tubing, PTFE, 0.066 inch (1.7 mm) ID, 0.080 inch (2 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-70-1M ARE‑Applied Research PTFE Tubing is a thin‑walled, ultra‑high flow fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering an extra‑large internal diameter with minimal wall thickness for extremely low flow resistance.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring maximum chemical purity and compatibility with sensitive analytical workflows.
Precision Dimensions – Ultra‑Low Restriction Flow Path
Inner Diameter (ID): 0.066" (1.7 mm)
Outer Diameter (OD): 0.080" (2.0 mm)
Wall Thickness: 0.15 mm
Tolerance (ID & OD): ± 0.20 mm
✅ Extremely large ID with very thin wall provides minimal resistance and maximum flow rates
Thin‑Wall Construction – Maximum Flow Efficiency
Ultra‑thin wall design minimizes material resistance
Enables rapid solvent movement and high‑volume flow
Ideal where pressure drop must be minimized
✅ Best suited for gravity flow, venting, and bulk transfer applications
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump solvent routing
Post‑detector waste lines
Bulk solvent transfer and venting
Pressure Rating: 150 psi (10.3 bar)
✅ Suitable for very low‑pressure systems only
⚠️ Handling Caution – Ultra‑Thin Wall Design
Very thin wall construction (0.15 mm)
Easily kinked, crushed, or damaged
✅ Handle with care during:
Installation
Cutting
Routing
✅ Avoid tight bends and mechanical stress
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace particles for manufacturing identification)
Chemically inert and non‑reactive
✅ Ensures minimal contamination for LC‑MS and sensitive workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous solutions
Maximum Temperature: 260 °C
✅ Suitable for aggressive chemical environments and elevated temperatures
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternatives where gas impermeability is critical
Flexible & Lightweight Design
Lightweight and flexible for low‑stress routing
Natural translucent appearance allows flow visibility
✅ Ideal for non‑pressurized fluid transfer paths
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Choose the configuration appropriate for your system:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Gravity feed solvent lines
Vent lines and gas exchange pathways
Bulk solvent transfer at very low pressure
Waste line routing with minimal resistance
General laboratory fluid handling
Important Usage Notes
🚨 Very thin wall – handle carefully to prevent kinking or collapse
Not suitable for moderate or high‑pressure systems
Consider permeability for degassed or oxygen‑sensitive solvents
Use minimal mechanical stress and proper routing support
